名稱： Switch between 2 SSI Encoders and a target device
編號(hào)： GI210
品牌： motrona

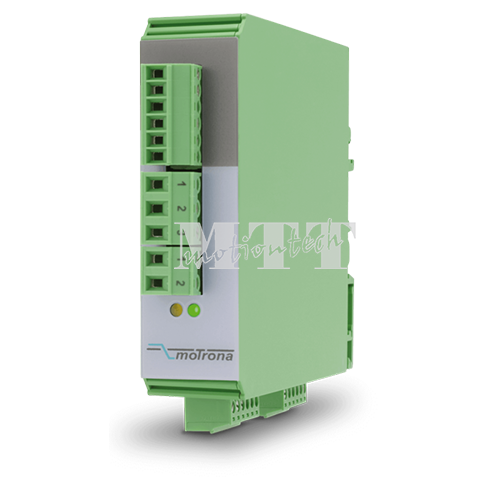

The GI210 is an encoder switch for contactless, bounce-free switching of two SSI encoders on a SSI master. The compact device is cascadable with other devices and is easily mounted by snapping onto a top-hat rail in the switch cabinet. Typical applications are for example in conveyor systems, where a smart device (master) makes the sum or difference of two independent SSI encoders. There are also applications in drive technology (e.g. automatic roll change) or in the general automation of redundant safety systems. |  |
?Control input with format [HTL] ?2 SSI inputs with format [RS422] ?Cutt-off frequency 100 kHz ... 1 MHz ?2 encoder inputs, short-circuit-proof ?1 SSI output with format [RS422] ?Power supply 12 ... 30 V DC ?Current consumption (unloaded) 50 mA ?Encoder supply 2 x 125mA (Vin – 2 V) short-circuit-proof ?Delay / Output / Input100 ns ?Operation temperature : 0 ... 45 °C (32 ... 113 °F) ?SSI pause time min. 25 ns ?Switching time is synchronized automatically with the next SSI break ?Cascadable for more SSI encoders ?All connections via pluggable screw terminal block ?Snap-on housing for top hat rail(according to EN 60715) ?LEDs for indication of the input pulses ?Dimension W x H x D = 22,5 x 121 x 112 mm (8.86 x 47.64 x 44.09'') ?Plastic housing incl. plug |  |
