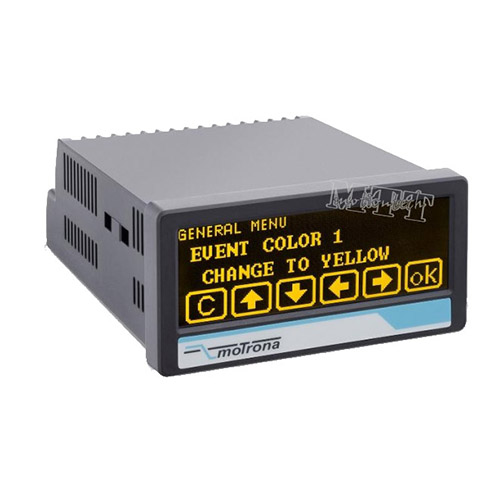

Process indicator with resistive touch
panel and multi-colour graphic display (red, green, yellow). Visualization of
plain text, symbols and units. Arbitrarily combinable, modular configuration
with analog output, switching outputs, relay, serial interface (Modbus) and 115
... 230 VAC.
-
● 2 analog inputs
(16 bit) / 3 control inputs
-
● ±10 V / 0 … 20 mA
/ 4 … 20 mA
-
● accurate 10 V
reference output for potentiometers
-
● mode for single ,
dual or cross calculated inputs
-
● totalization,
tara, average filter, etc. for each input
-
● totalization of
sum / difference of both inputs
-
● linearization with
24 set points for each input
