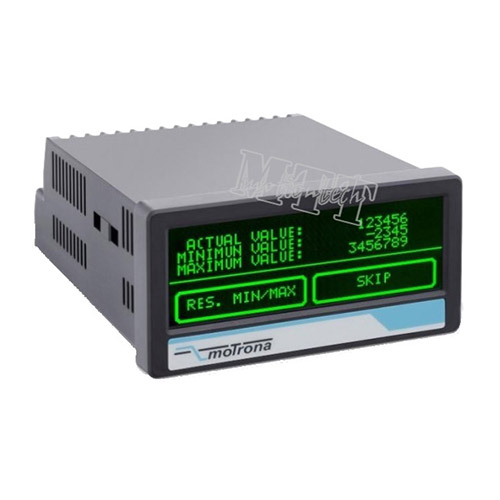

By default the display devices of the touchMATRIX series provide a 186 x 64 pixel graphic display. Therefore plaintext, symbols and units can be displayed in a variable way. The LED-backlight display enables the graphic representation in the colors red, green and yellow. Due to the intuitive parameterization these colour variations simply can be used event-dependent (e. g. in case of limit values). Maximum flexibility in connectivity and application is proven by arbitrarily combinable, modular configuration with analog output, switching outputs, relay, serial interface (Modbus) and 115 / 230 VAC. With the resistive touch panel and IP65 the touchMATRIX displays are ideal for use in the food industry.

touchMATRIX系列數(shù)字顯示儀表（HTL）   DX350

• ●  2 incremental inputs (HTL) / 3 control inputs
• ●  for PNP, NPN or NAMUR sensors
• ●  up to 250 kHz
• ●  for speed, process time, timer, counter or velocity application
• ●  linearization with 24 set points
• ●  scaling, average filter, start up suppression

touchMATRIX系列數(shù)字顯示儀表（HTL/RS422）   DX355

• ●  2incremental inputs RS422 / TTL 3 control inputs
• ●  up to 1 MHz
• ●  all other functions equal to DX350
