名稱：Single Axis Position Controller with 4 Relay Outputs
編號：PS641
品牌：motrona

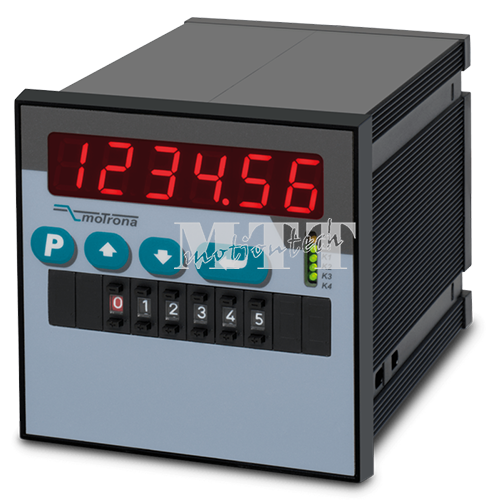

The PS641 programmable single-axis positioning controller, like the variant PS340, has a very short lag control as well as intelligent calculation algorithms. These ensure the highest precision in all single-axis applications with electrical or hydraulic 4-Q actuators with a ±10 V setpoint input. Further features are a super-smooth run with maximum protection of the mechanics by means of a self-optimizing polynomial movement profile, as well as different operating modes, eg for absolute and relative positions (chain dimension) or grinding operation. Compared to the PS340 the PS641 is delivered in a larger standard housing (outside dimensions 96 x 96 x 140 mm / 3.78. x 3.78 x 5.51"). Thanks to its larger design, this control unit also has 4 potential-free changeover relay outputs as well as a BCD decade switch on the front for the direct specification of the chain dimension. |  |

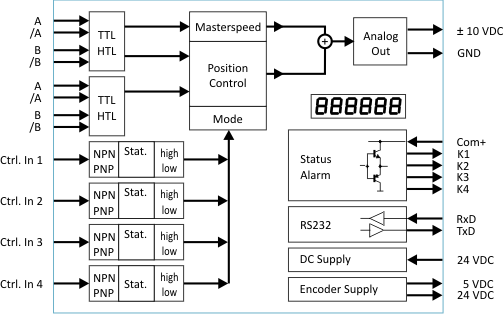

?2 pulse inputs with format A, B, 90° [HTL]or A, /A, B, /B [RS422] ?4 control inputs for HTL / PNP / NPN / Namur signals[10 ... 30 VDC] ?Input frequency up to 300 kHz ?4 fast transistor outputs, push-pull, short-circuit-proof[5 … 30 VDC] ?1 scalable 14 bit analog output(±10 V or 0/4 … 20 mA) ?Loop time approx. 250 μs ?Defining incremental dimensions via keyboard or BCD decade switch on the front ?Power supply 24 VAC and 17 … 40 VDC ?Compact norm panel housing(according to EN 60715) ?Top hat rail mounting by using SM600 support brackets (option) ?Setup via keys or via PC by serial RS232 interface ?PROFIBUS conncetion via motrona gateway PB251 ?Dimension 96 x 96 x 140 mm (3,78 x 3,78 x 5,51") |  |
