名稱：Single Axis Position Controller
編號(hào)：PS340
品牌：motrona

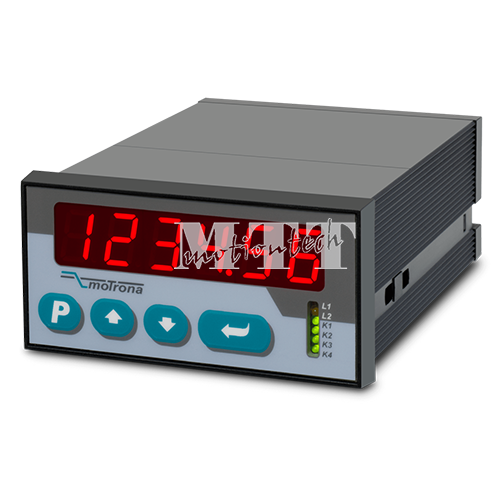

The simple programmable position controller PS340 offers an excellent price-performance ratio, which is particularly interesting for operators of smaller machine systems. An extremely short position control and intelligent calculation algorithms ensure the highest precision in all single-axis applications with electrical or hydraulic 4-Q drives with a ±10 V setpoint input. Further features are a super-smooth run with maximum protection of the mechanics by means of a self-optimizing polynomial movement profile, as well as different operating modes, e.g. for absolute and relative positions (chain dimension) or grinding operation. The analog output also has 4 digital transistor outputs whose switching points can be defined by means of 4 programmable limit values. The PS340 is equipped with a keypad. The device is in a standard housing (96 x 48 x 140 mm / 3.78 x 1.89 x 5.51") and is intended for installation in panel panels. |  |

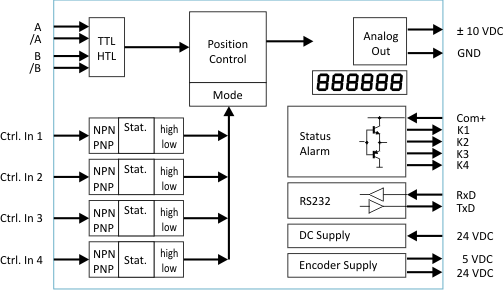

?2 pulse inputs with format A, B, 90° [HTL]or A, /A, B, /B [RS422] ?4 control inputs for HTL / PNP / NPN / Namur signals[10 ... 30 VDC] ?Input frequency up to 300 kHz ?4 fast transistor outputs, push-pull, short-circuit-proof[5 … 30 VDC] ?1 scalable 14 bit analog output(±10 V or 0/4 … 20 mA) ?Loop time approx. 250 μs ?Defining incremental dimensions via keyboard ?Power supply 24 VAC and 17 … 40 VDC ?Compact norm panel housing(according to EN 60715) ?Top hat rail mounting by using SM300 support brackets (option) ?Setup via keys or via PC by serial RS232 interface ?PROFIBUS conncetion via motrona gateway PB251 |  |
